Lift Gas springs

Experience the quality and comfort of our products in the opening, closing or positioning process.

Lift Gas Springs and Gas Struts

Lift Gas Springs For smooth Lifting Lowering Counter balancing Force

Calculate The Exact Product That You Need

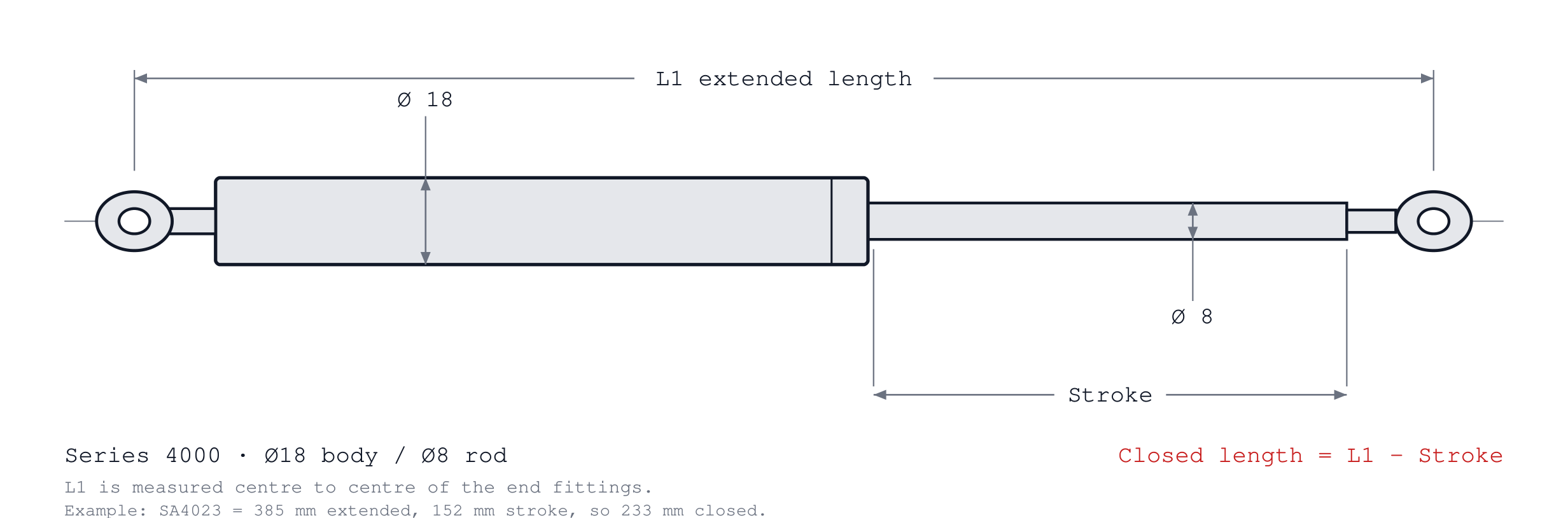

Series 4000

Part NumberExtended Length
(L1)		StrokeClosed LengthNewton RangeCylinder Ø / Rod Ø
SA4039188mm50mm138mm50-450N18 / 8
SA4040238mm82mm156mm50-700N18 / 8
SA4041288mm107mm181mm50-700N18 / 8
SA4042320mm115mm205mm50-700N18 / 8
SA40422338mm129mm209mm50-700N18 / 8
SA4023 (SA4043)385mm152mm233mm50-700N18 / 8
SA4044438mm179mm259mm50-700N18 / 8
SA4323450mm185mm265mm50-700N18 / 8
SA4074 (SA4045)485mm203mm282mm50-700N18 / 8
UL5194500mm201mm299mm50-700N18 / 8
SA4046535mm225mm310mm50-700N18 / 8
SA4047585mm252mm333mm50-700N18 / 8
SA4048638mm277mm361mm50-700N18 / 8
SA4049688mm302mm386mm50-700N18 / 8
SA4050738mm329mm409mm50-700N18 / 8
SA4051788mm357mm431mm50-700N18 / 8
SA4052835mm370mm465mm50-700N18 / 8

Series 4100

Part NumberExtended Length
(L1)		StrokeClosed LengthNewton RangeCylinder Ø / Rod Ø
SA4135150mm50mm100mm50 - 1300N22 / 10
SA4136200mm75mm125mm50 - 1300N22 / 10
SA4137250mm100mm150mm50 - 1300N22 / 10
SA4138300mm125mm175mm50 - 1300N22 / 10
SA4140350mm150mm200mm50 - 1300N22 / 10
SA4141400mm175mm225mm50 - 1300N22 / 10
SA4142450mm200mm250mm50 - 1300N22 / 10
SA4143500mm225mm275mm50 - 1300N22 / 10
SA4144550mm250mm300mm50 - 1300N22 / 10
SA4145600mm275mm325mm50 - 1300N22 / 10
SA4146650mm300mm350mm50 - 1300N22 / 10
SA4147700mm325mm375mm50 - 1300N22 / 10
SA4148750mm350mm400mm50 - 1300N22 / 10
SA4149800mm350mm450mm50 - 1300N22 / 10
SA4150850mm400mm450mm50 - 800N22 / 10
SA4151900mm425mm475mm50 - 800N22 / 10
SA4152950mm450mm500mm50 - 800N22 / 10
SA41531000mm475mm525mm50 - 800N22 / 10

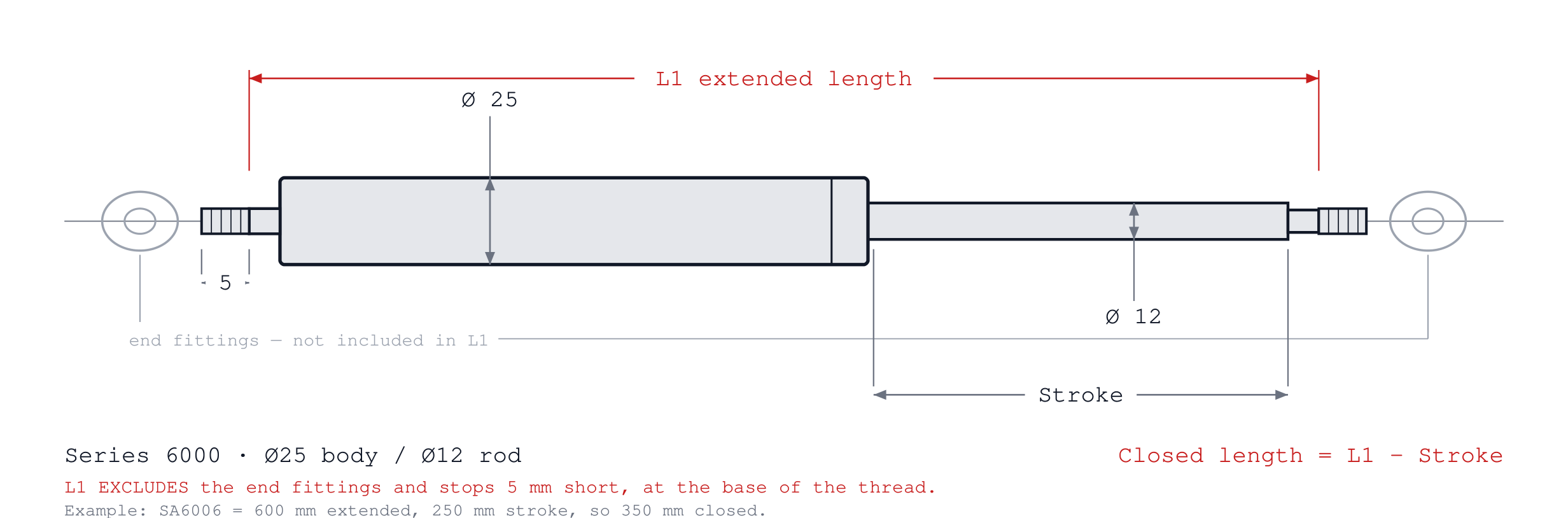

Series 6000

Part NumberExtended Length
(L1)		StrokeClosed LengthNewton RangeCylinder Ø / Rod Ø
SA6001350mm125mm225mm100N - 2000N25 / 12
SA6002400mm150mm250mm100N - 2000N25 / 12
SA6003450mm175mm275mm100N - 2000N25 / 12
SA6004500mm200mm300mm100N - 2000N25 / 12
SA6005550mm225mm325mm100N - 2000N25 / 12
SA6006600mm250mm350mm100N - 2000N25 / 12
SA6007650mm275mm375mm100N - 2000N25 / 12
SA6008700mm300mm400mm100N - 2000N25 / 12
SA6009750mm325mm425mm100N - 2000N25 / 12
SA6010800mm350mm450mm100N - 2000N25 / 12
SA6011850mm375mm475mm100N - 2000N25 / 12
SA6012900mm400mm500mm100N - 2000N25 / 12
SA6013950mm425mm525mm100N - 2000N25 / 12
SA60141000mm450mm550mm100N - 2000N25 / 12

Series 6100

Part NumberExtended Length
(L1)		StrokeClosed LengthNewton RangeCylinder Ø / Rod Ø
SA6101350mm120mm230mm100N - 2500N28 / 14
SA6102400mm145mm255mm100N - 2500N28 / 14
SA6103450mm170mm280mm100N - 2500N28 / 14
SA6104500mm195mm305mm100N - 2500N28 / 14
SA6105550mm220mm330mm100N - 2500N28 / 14
SA6106600mm245mm355mm100N - 2500N28 / 14
SA6107650mm270mm380mm100N - 2500N28 / 14
SA6108700mm295mm405mm100N - 2500N28 / 14
SA6109750mm320mm430mm100N - 2500N28 / 14
SA6110800mm345mm455mm100N - 2500N28 / 14
SA6111850mm370mm480mm100N - 2500N28 / 14
SA6112900mm395mm505mm100N - 2500N28 / 14
SA6113950mm420mm530mm100N - 2500N28 / 14
SA61141000mm445mm555mm100N - 2500N28 / 14
SA61151250mm570mm680mm100N - 2500N28 / 14
SA61161500mm695mm805mm100N - 2500N28 / 14

Series 7100

Part NumberExtended Length
(L1)		StrokeClosed LengthNewton RangeCylinder Ø / Rod Ø
SA7101350mm105mm245mm200N - 4500N40 / 20
SA7102400mm130mm270mm200N - 4500N40 / 20
SA7103450mm155mm295mm200N - 4500N40 / 20
SA7104500mm180mm320mm200N - 4500N40 / 20
SA7105550mm205mm345mm200N - 4500N40 / 20
SA7106600mm230mm370mm200N - 4500N40 / 20
SA7107650mm255mm395mm200N - 4500N40 / 20
SA7108700mm280mm420mm200N - 4500N40 / 20
SA7109750mm305mm445mm200N - 4500N40 / 20
SA7110800mm330mm470mm200N - 4500N40 / 20
SA7111850mm355mm495mm200N - 4500N40 / 20
SA7112900mm380mm520mm200N - 4500N40 / 20
SA7113950mm405mm545mm200N - 4500N40 / 20
SA71141000mm430mm570mm200N - 4500N40 / 20
SA71151200mm530mm670mm200N - 4500N40 / 20
SA71162000mm930mm1070mm200N - 4500N40 / 20

applications include trunks & tailgates windows doors canopies furniture

Struts Africa® gas springs are engineered for ongoing motion, delivering a seamless lifting or lowering force. They simplify the process of opening and closing panels, hoods, and lids.

  • Function: Mainly utilized for lifting, supporting, or counterbalancing various loads.

  • Mechanism: Operate using pressurized gas to generate the required force for lifting or lowering.

  • Applications:
    • Automotive: Supporting car hoods, trunks, and hatches.
    • Furniture: Adjustable chairs and tables.
    • Industrial: Lifting and lowering mechanisms in industrial machinery.
    • Medical: Adjustable medical beds and operating tables.
    • Doors and Panels: Supporting doors and panels in various applications.

Dampers

Struts Africa® hydraulic dampers, often referred to as shock absorbers, play a crucial role in the precise regulation of machinery and equipment movement. These dampers employ the damping properties of a liquid, usually oil, to effectively decelerate motion and mitigate shocks. Our quality dampers ensure optimal performance and longevity in a wide range of applications.

Locking Gas Springs

Locking gas springs enable controlled motion and secure positioning, commonly used in safety-critical applications like hospital beds. They use compressed gas to generate force, ensuring smooth and precise movement while allowing users to adjust and lock the bed’s position.
