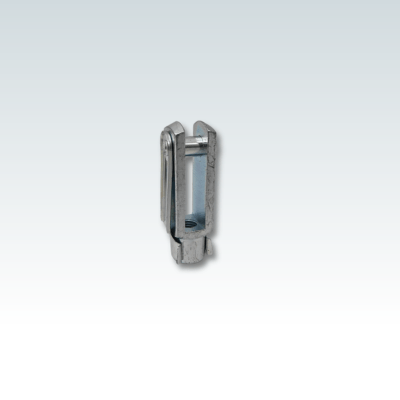

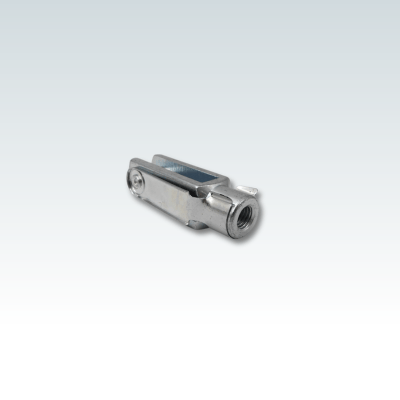

Steel Clevis
Struts Africa® supplies high quality steel clevis fasteners designed to support heavy loads. They provide a more secure and robust connection compared to standard retaining pins.
Their U-shaped design allows for rotational movement around a pin, making them versatile for various applications. Zinc-plated for corrosion resistance, they enhance durability and longevity.
Description

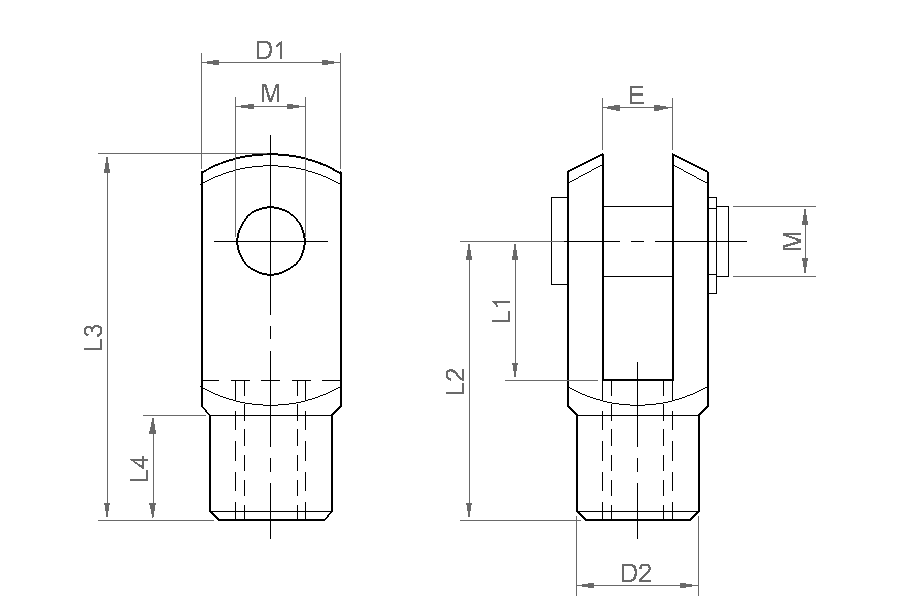

Technical Specifications
| Product Code | M | E | D1 | D2 | L1 | L2 | L3 | L4 |
|---|---|---|---|---|---|---|---|---|
| G6x12 | M6 | 6mm | 12mm | 10mm | 12mm | 19mm | 31mm | 9mm |
| G6x24 | M6 | 6mm | 12mm | 10mm | 24mm | 19mm | 43mm | 9mm |
| G8x16 | M8 | 8mm | 16mm | 14mm | 16mm | 26mm | 42mm | 12mm |
| G8x32 | M8 | 8mm | 16mm | 14mm | 32mm | 26mm | 58mm | 12mm |
| LX1324 | M8 | 9mm | 16mm | 15mm | 21mm | 8mm | 39mm | 5mm |
| G10x20 | M10 | 10mm | 20mm | 18mm | 20mm | 52mm | 72mm | 15mm |
| G10x40 | M10 | 10mm | 20mm | 18mm | 40mm | 12mm | 52mm | 15mm |
