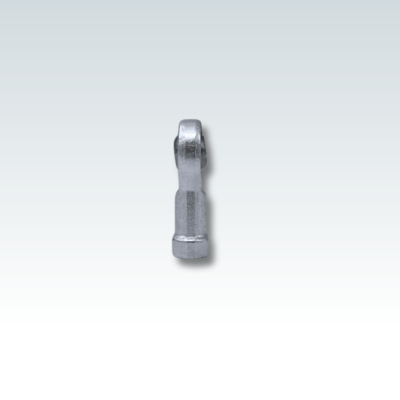

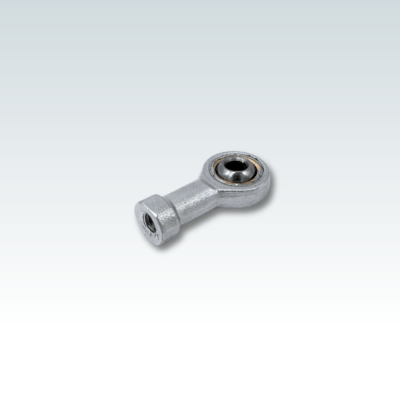

Rose Ball Joint / Spherical Eyelet
High Strength Heim Rose Ball Joint Rod End, Zinc-Plated Carbon Steel, with Copper Alloy Bushing.
- Self-aligning
- High temperature resistance
- carrying capability
- self-lubrication
Description
| Product Code | d | B | G | h1 | h2 | d1 | d2 | d3 | W |
|---|---|---|---|---|---|---|---|---|---|
| LX258 | 6mm | 9mm | M6 | 30mm | 41mm | 20mm | 13mm | 10mm | 11mm |
| LX202 | 8mm | 12mm | M8 | 36mm | 48mm | 24mm | 16mm | 12.5mm | 13mm |
| LX201 | 10mm | 14mm | M10 | 43mm | 59mm | 28mm | 19mm | 15mm | 16mm |
| LX204 | 12mm | 16mm | M12 | 50mm | 67mm | 32mm | 22mm | 17.5mm | 18mm |
